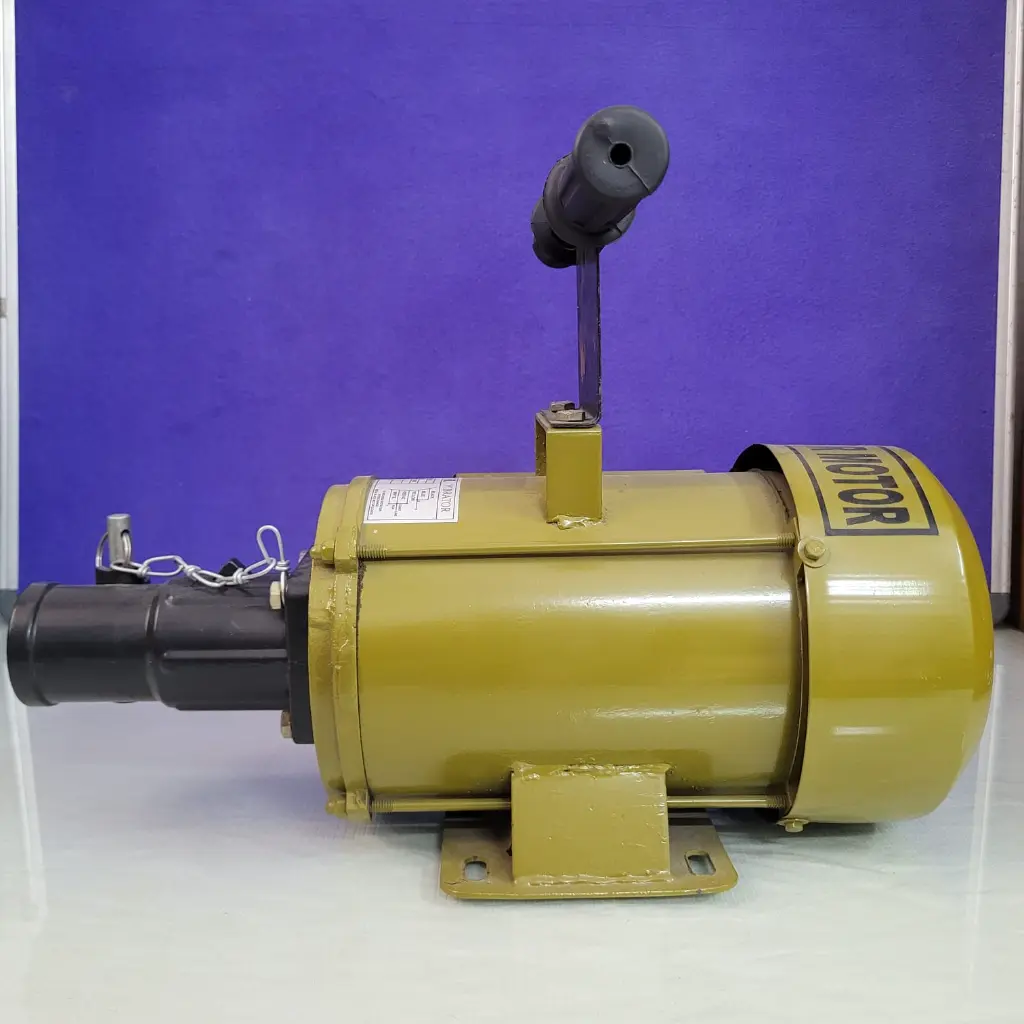

Anmol Heavy-Duty 2.0 HP Electric Concrete Vibrator Motor

Designed for demanding construction environments, the Anmol Heavy-Duty Electric Concrete Vibrator Motor delivers reliable, continuous power for optimal concrete consolidation. Proudly made in India, this robust induction motor ensures your concrete pours are free of trapped air voids, maximizing structural integrity, density, and finish quality.

Key Features

• High-Performance Output: Equipped with a formidable 1.5 KW (2.0 HP) induction motor operating at a swift 2800 RPM, providing the consistent, high-frequency vibration needed for efficient concrete settling.

• Continuous Duty Built: Rated for continuous duty operation (DUTY CONT.). It is engineered to handle extensive, prolonged pouring jobs without fatigue, safely operating in ambient temperatures up to 40°C.

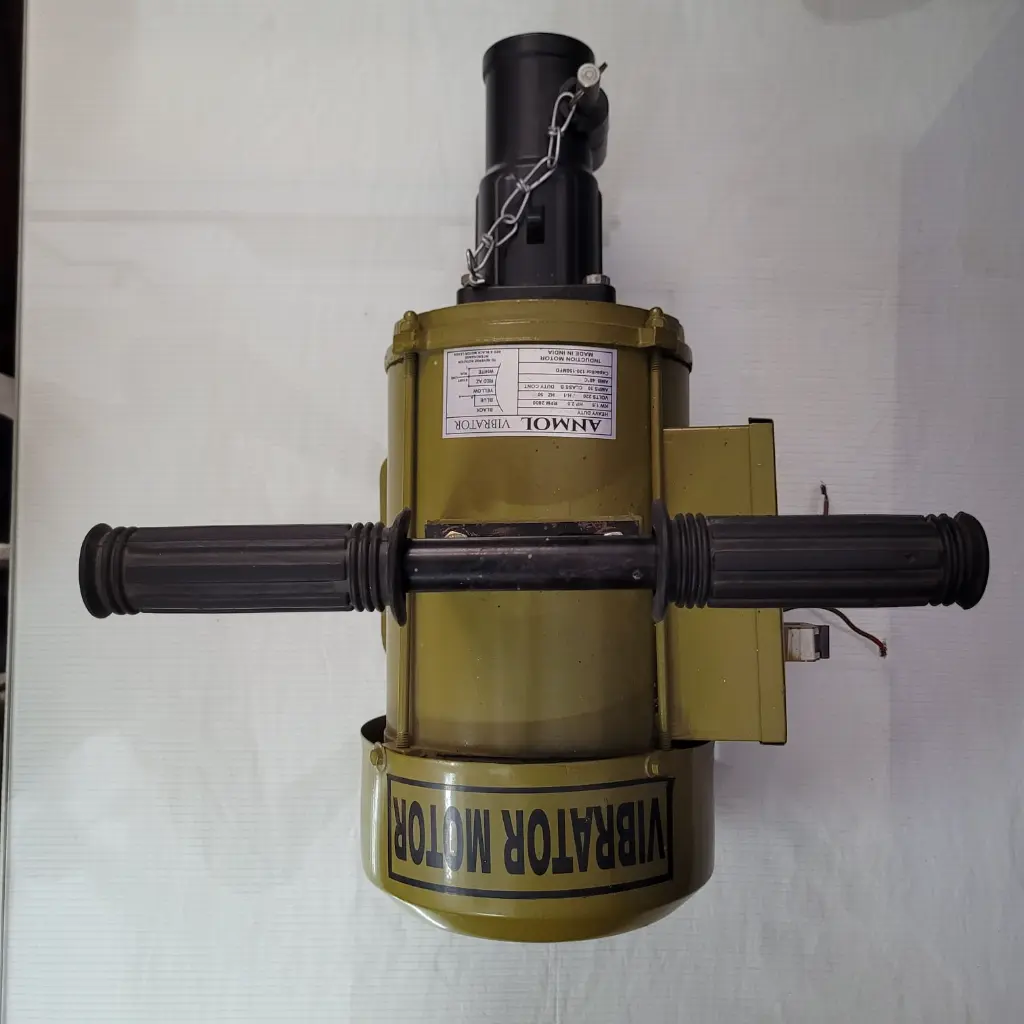

• Rugged & Portable Design: Encased in a heavy-duty, reinforced metal housing with a durable painted finish. It features an integrated, ergonomic T-handle with dual rubber grips for easy transport, lifting, and positioning across busy job sites.

• Accessible Power Control: Features a built-in, easily accessible toggle switch (MCB style) on the side panel for quick power management and added electrical safety.

• Universal Coupling: Comes with a standardized front-facing, quick-release coupling block and pin system, making it easy to attach and detach standard flexible vibrator shafts (pokers).

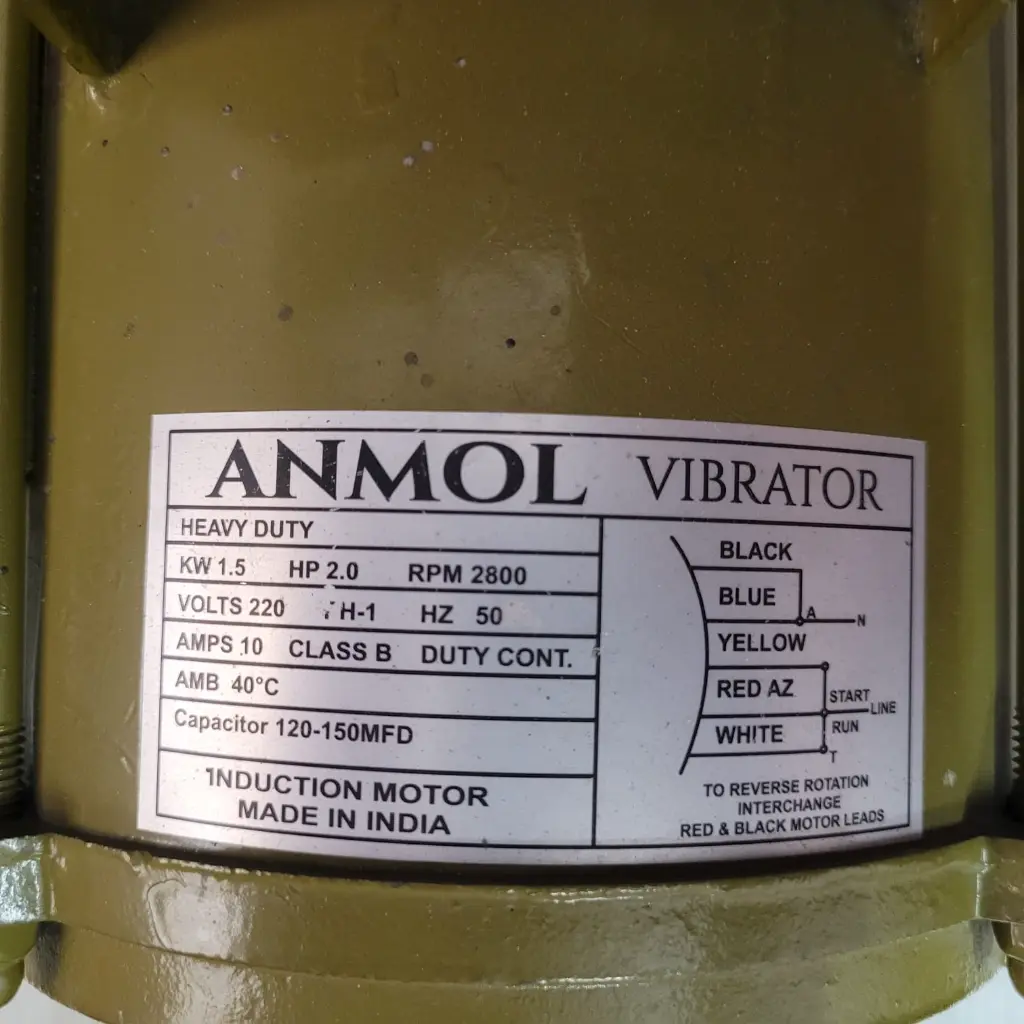

• Service-Friendly: The motor features a clear, easy-to-read specification plate that includes a detailed wiring diagram. It also supports reversible rotation simply by interchanging the red and black motor leads.

Technical Specifications
